Device configuration：
　　Name:The new rural community sewage treatment equipment
　　Model: zl-xncws001
　　Sewage quantity: 1-10 (m3 / h)
　　Outlet pipe diameter: 150 (mm)
　　Inlet pipe diameter: 200 (mm)
　　Aerator power: 0.5-10 (kw)
　　Pump power: 1-3 (kw)
　　Processing custom:

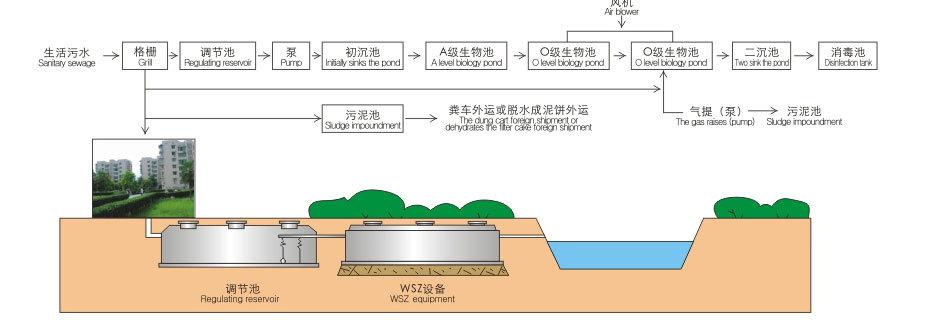

　　Technological process:

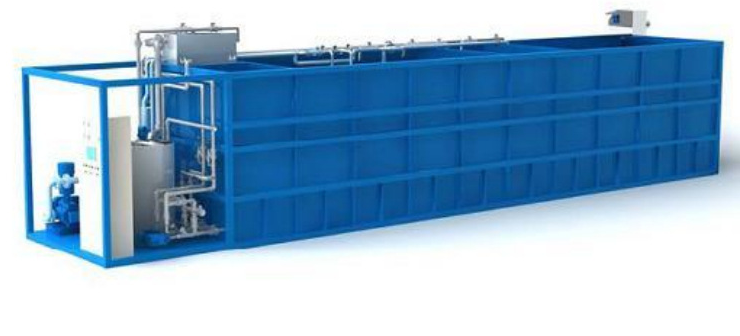

　　Equipment structure:
　　1. The equipment body according to water treatment for carbon steel structure commonly, anticorrosive epoxy asphalt;
　　2. The biochemical filler and support, suspended biological packing type and high efficiency;
　　3. The fan and pump components;
　　4. Piping system: PVC, stainless steel, carbon steel, on the basis of fluid properties;
　　5. Instrument and meter, liquid level gauge, pressure gauge;
　　6. Disinfection equipment;
　　7. Other spare parts.

　　Scope of application:
　　1. The new rural communities, residential quarters, villages and towns;
　　2. Hotels, restaurants, nursing homes, hospitals, resorts;
　　3. The railway stations, airports, docks, ship, engineering camp;
　　4. The factories, mines, troops, attractions, scenic spots;
　　5. Like all kinds of industrial organic wastewater and sewage.
　　Product features:
　　1. Our company adopts the integrated design, save a space, the layout is compact, can be buried in the ground, the surface can be used as green or other land, saves the land, and no impact on the surrounding environment.
　　2. Push streaming biological contact oxidation, treatment effect is better than that of completely mixed or secondary series hybrid biological contact oxidation pool completely. Adaptability to water quality, strong resistance to impact load performance is good, stable discharging water, no sludge bulking.
　　3. The pool with new elastic solid packing, specific surface area is large, microbial easy hanging membrane, membrane, under the condition of same organic load, high removal rate of organic matter, can increase the oxygen in air solubility in water. Biochemical pool using the biological contact oxidation method, the packing is lower, the volume of the load itself in the microbial oxidation phase, less sludge production, easy to dredge.
　　4. The deodorization methods can be used air exhaust, or odor treatment unit, a simple and reliable.
　　5. Integrated automatic electrical control systems and equipment fault alarm system, safe and reliable running, without personal care operation maintenance cost is low.
　　6. Use glass reinforced plastics, stainless steel, carbon steel anticorrosion structure, which have excellent properties such as corrosion resistance, anti-aging, the service life of 20 years.
